Applications:

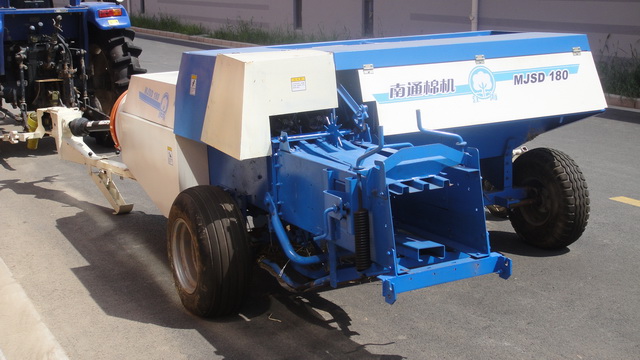

MJSD square hay baler is mainly used in gathering pasture,paddy and wheat straw.It can work automatically.Also it is easy to transport,stockpile and deep processing.The machine is appropriate to work in the farm and grass field.You can adjust the length and density of the grass sheaf according to crop condition,transportation and stockpile request.
Applications:
① Adopted with Original knottier from Germany,succeed in knotting and making the bale solid and firm,the size of the bale is even
②Much hay feeding,pick up cleanly,reduce losses,production efficiency is high
③Widely used to collect and pack up paddy and wheat straw
④Easy operation,stable performances,flexible to move,the durability of gear transmission system is good
⑤Can pick up in walking and feed the straw by fixed electrical machinery,improve productivity and machine capacity
Technical Specifications:
Model | MJSD140 | MJSD105 |
Dimension | 390 x 215 x 140 mm | 390 x 205 x 140 mm |
Overall Weight | 1100kg | 980kg |
Section Dimension | 42cm x 32cm | 46cm x 36cm |
Bale Length | 30cm-110cm | 30cm-100cm |
Supporting Power | 30hp-50hp | 25hp-40hp |
Bale Density | ≥100kg/m3(Moisture 20%） | ≥100kg/m3(Moisture 20%） |
Number of piston strokes | 86-90times/min | 86-90times/min |
Width of the pick-up | 140cm | 105cm |
Line of spring-tooth | 4 | 4 |
Number of spring-tooth | 32 | 28 |
Work Efficiency | 120-240 bales/h | 120-240 bales/h |
Work Speed | 4-6km/ h | 4-6km/ h |
