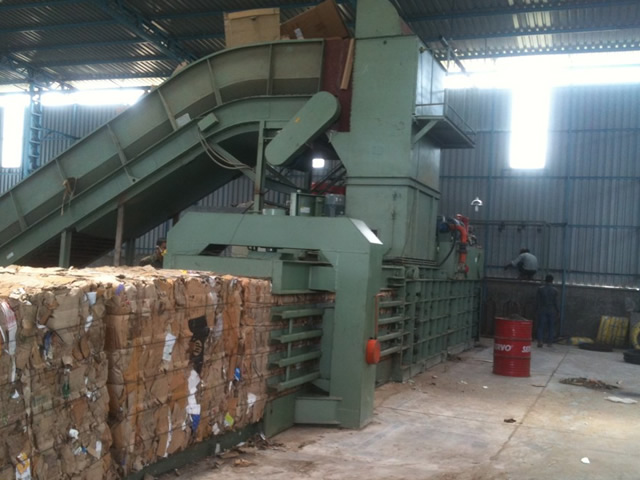

Applications:
MZD/MZDS series of wastepaper baling presses are specially used in medium and large sized wastepaper recycling centers/companies.It compresses and bales old corrugated cartons(OCC),used newspaper,etc.for easy storage and transportation.The baling press features artistic appearance,durable and stable performance,reasonable oil circuit design,and sound electric control program that realizes automatic material feeding,pressing,wire applying,wire twisting,wire length measurement,bale ejection,etc.It is also characteristic of low power consumption,high output,easy operation,and convenient maintenance.
Features:
① The electrical system is adopted with PLC control system,it will bring out the result of auto-circulate compressing,when failure appears,the system will automatically shuts down,to ensure the safety of labor and the equipment.
② Stability of structure
③ With failure messages,failure indication and alarm automatically with solution

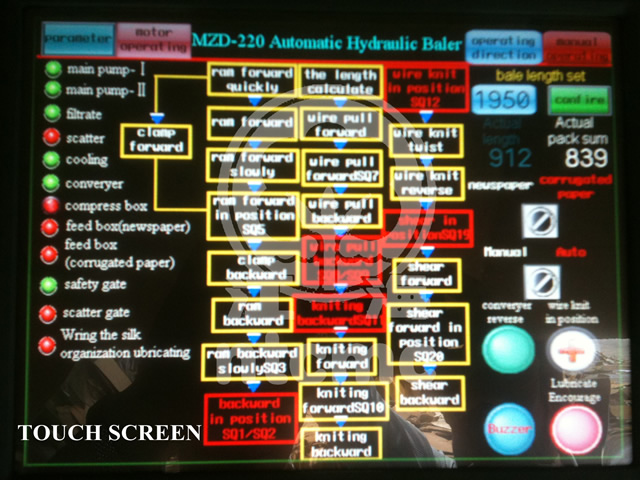

④ The control console is equipped with the touch screen interface to realize the switching among different interfaces electric control,movement control,work flow display,data adjustment,etc.
Model | MZDS125B | MZDS125A |
Main Part Dimension | L 10200 x W 1450 x H 3360 mm | L 11000 x W 1450 x H 3360 mm |
Feed Opening Dimensions | L 2000xW 1000 mm | L 2100xW 1000 mm |
Bale Size Expanded Dimension | W 1100 x H 1250 x L 1600 mm | W 1100 x H 1250 x L 1600 mm |
Bale Weight | 900~1000KG | 900~1000KG |
Effciency | 125T | 14-16TH(OCC) |
Tension Type | Manual | Manual |
Number of Ties | 4 wires | 4 wires |
Operating mode | PLC,Touch screen,Button | PLC,Touch screen,Button |
Total power | 46KW | 46KW |
Work Method | Semi automatic | Semi automatic |
Model | MZD160 | MZDS160AA | MZD160B |
Main Part Dimension | L 11000 x W 1450 x H 5000 mm | L 13000 x W 1450 x H 3360 mm | L 11000 x W 1450 x H 5000 mm |
Feed Opening Dimensions | L 2100xW 1000 mm | L 2300xW 1000 mm | L 2100xW 1000 mm |
Bale Size Expanded Dimension | W 1100 x H 1250 x L 1600 mm | W 1100 x H 1250 x L 1600 mm | W 1100 x H 1250 x L 1600 mm |
Bale Weight | 900~1000KG | 1000~1100KG | 900~1000KG |
Effciency | 7-9TH(OCC) | 160T | 8-10TH(OCC) |
Tension Type | Pushing wire | Manual | Pushing wire |
Number of Ties | 4 wires | 5 wires | 5 wires |
Operating mode | PLC.Touch screen,Button | PLC.Touch screen,Button | PLC.Touch screen,Button |
Total power | 52KW | 46KW | 63KW |
Work Method | Full automatic | Semi automatic | Full automatic |

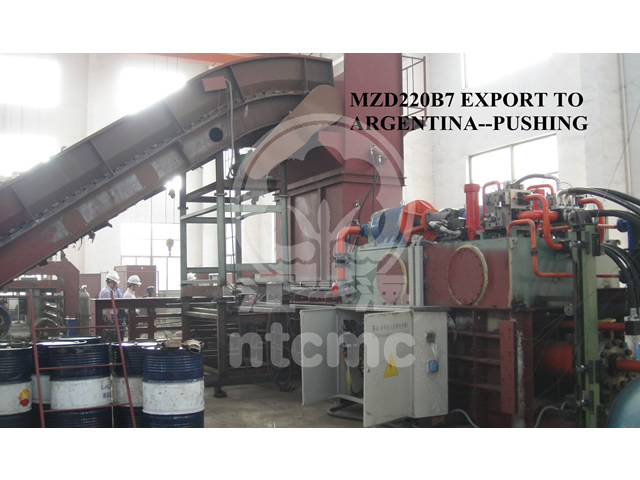

Model | MZD220 | MZD220B7 | MZD220B9 |
Main Part Dimension | L 11000 x W 1450 x H 5050 mm | L 11000 x W 1450 x H 5050 mm | L 11000 x W 1450 x H 5050 mm |
Feed Opening Dimensions | L 2100xW 1000 mm | L 2100xW 1000 mm | L 2100xW 1000 mm |
Bale Size Expanded Dimension | W 1100 x H 1250 x L 1600 mm | W 1100 x H 1000 x L 1600 mm | W 1100 x H 1250 x L 1600 mm |
Bale Weight | 900~1000KG | 700~800KG | 900~1000KG |
Effciency | 14-16TH(OCC) | 18-25TH(OCC) | 16-20TH(OCC) |
Tension Type | Hooking wires | Pushing wires | Pushing wires |
Number of Ties | 5 wires | 4 wires | 5 wires |
Operating mode | PLC.Touch screen,Button | PLC.Touch screen,Button | PLC.Touch screen,Button |
Total power | 99KW | 136KW | 136KW |
Work Method | Full automatic | Full automatic | Full automatic |
